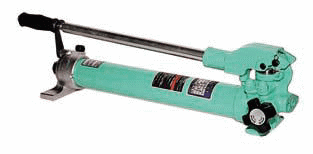

 ＴＷＡ－０．７  ＴＷＡ－４  ＴＷＡ－８ |
７２MPa(720kgf/cm2) | |
| TWA type Hand pump | ||
| High and low two stage oil output mechanism, max pressure 72MPa Special steel of pump body enjoys superior durability. TWA-8M is middle pressure type and set pressure 21MPa at first stage
|
| items model |
Usable Oil Volume (L) |
Working Pressure MPa (kgf/㎝2) |
Output volume (ml) |
Connection Port |
Weight (kg) |
||
| High | Low | High | Low | ||||
| TWA-0.3 | 0.3 | 72（720） | 3（30） | 1 | 5 | Rc3/8 | 3.5 |
| TWA-0.7 | 0.7 | 2 | 11 | 7.0 | |||
| TWA-0.9 | 0.9 | 2 | 11 | 7.9 | |||
| TWA-1.3 | 1.3 | 2 | 11 | 9.0 | |||
| TWA-2.3 | 2.3 | 2 | 24 | 13.8 | |||
| TWA-4 | 4 | 2 | 11 | 13.2 | |||
| TWA-6 | 6 | 2 | 24 | 19.5 | |||
| TWA-8 | 8 | 2(20) | 9 | 90 | 57 | ||
| TWA-8M | 8 | 21(210) | 2(20) | 22 | 90 | 57 | |
| TWA-8M is middle pressure's output type that output pressure for high is set at 21Mpa. |
|
||
 ＴＷＡD－０．９ |
７２MPa(720kgf/cm2) | |
| TWAD type Hand pump for double acting jack |
||
| High and low two stage mechanism used for double acting jack Special steel pump body enjoys superior durability |
| items model |
Usable Oil Volume (L) |
Workin Pressure MPa (kgf/㎝2) |
Output Volume (ml) |
Connection Port | Weight (kg) |
||
| High | Low | High | Low | ||||
| TWAD-0.9 | 0.9 | 72（720） | 3（30） | 2 | 11 | 1-Rc3/8 | 9.0 |
| TWAD-1.3 | 1.3 | 2 | 11 | 10.0 | |||
| TWAD-2.3 | 2.3 | 2 | 24 | 14.8 | |||
| TWAD-4 | 4 | 2 | 11 | 14.2 | |||
| TWAD-6 | 6 | 2 | 24 | 20.5 | |||
| TWAD-8 | 8 | 2(20) | 9 | 90 | 59 | ||
| TWAD-8M | 8 | 21(210) | 2(20) | 22 | 90 | 59 | |
| TWA-8M is middle pressure's output type that outoput pressure for high is set at 21Mpa. |
|
Lightweight type | ||
 ＬＴＷＡ－０．７ |
７２MPa(720kgf/cm2) | ||
| ＬTWA type Lightweight Hand Pump for single acting jack |
|||
| High and low two stage oil output mechanism for single acting jack High quality for rust-resistant effect |
|||
| items model |
Usablle Oil Volume (L) |
Working Pressure MPa (kgf/㎝2) |
Output Volume (ml) |
Connection Port | Weight (kg) |
||
| high | low | high | low | ||||
| LTWA-0.7 | 0.7 | 72（720） | 1（10） | 2 | 11 | 1-Rc3/8 | 5.5 |
| LTWA-0.9 | 0.9 | 5.9 | |||||
 |
|||
 ＦＰＡ－０．５ |
７２MPa(720kgf/cm2) | ||
| ＦＰＡ type Foot pump for single acting jack | |||
| Compact and easy operation by foot |
|||
| items model |
Usable Oil Volume (L) |
Working Pressure MPa (kgf/㎝2) |
Output Volume (ml) |
Connection Port | Weight (kg) |
||
| High | Low | High | Low | ||||
| FPA-0.5 | 0.5 | 72（720） | 1（10） | 2 | 11 | 1-Rc3/8 | 7.0 |
|
Ultra-High Pressure type |
||
 ＴＷＡＸ－０．９ |
１００MPa(1000kgf/cm2) | ||
| TWAX type Hand Pump for single acting jack | |||
| High and low two stage oil output mechanism applied to 100MPa hydraulic jack | |||
 ＴＷＡＺ－０．７ |
２００MPa(2000kgf/cm2) | ||
| TWAZ type Hand Pump for single acting jack | |||
| High and low two stage oil output mechanism available for 200MPa hydraulic jack | |||
 ＴＷＡＵ－１．８ |
３００MPa(3000kgf/cm2) | ||
| TWAＵ type Hand Pump for single acting jack | |||
| High and low stage oil output mechanism applied to 300MPa actuator |
|||
| item model |
Usable Oil Volume (L) |
Working Pressure MPa (kgf/㎝2) |
Output Volume (ml) |
Conection Port |
Weight (kg) |
||
| High | Low | High | Low | ||||
| TWAＸ-0.9 | 0.9 | 100（1000） | 3（30） | 2 | 11 | 1-Rc3/8 | 8.8 |
| TWAＸ-1.3 | 1.3 | 10.0 | |||||
| TWAＺ-0.7 | 0.7 | 200（2000） | 3（30） | 0.6 | 11 | M22×1.5 | 7.0 |
| TWAＺ-1.3 | 1.3 | 1.0 | 9.0 | ||||
| TWAＺ-2.3 | 2.3 | 1.6 | 31 | 14.8 | |||
| TWAＵ-1.8 | 1.8 | 300(3000) | 3(30) | 1 | 11 | M22×1.5 | 13.0 |
